#Vehicle Detection and Tracking
##Histogram of Oriented Gradients (HOG)
The code for this step is contained in the get_feature() method of CarClassifier class in car_classifier.py file.
I started by reading in all the vehicle and non-vehicle images. Here is an example of one of each of the vehicle and non-vehicle classes:
below is the code for extracting combined features of an image
def get_feature(self, img):
""" Get feature of img
Attr:
img: image object
Returns:
feature vector
"""
feature = []
color_trans_img = cv2.cvtColor(img, cv2.COLOR_BGR2YCrCb)
img_shape = color_trans_img.shape
# Spatial feature
spatial_features = cv2.resize(color_trans_img, (16,16)).ravel()
feature.append(spatial_features)
# Histogram feature
hist_features = self.get_color_hist(color_trans_img)
feature.append(hist_features)
# Hog feature
hog_features = []
for channel in range(img_shape[2]):
hog_feature = hog(color_trans_img[:,:,channel], orientations=8,
pixels_per_cell=(8, 8),
cells_per_block=(2, 2),
transform_sqrt=True,
visualise=False, feature_vector=True)
hog_features.append(hog_feature)
hog_features = np.ravel(hog_features)
feature.append(hog_features)
return np.concatenate(feature)Car and Corresponding HOG feature visualization
Car
HOG Feature
I tried various combinations of parameters and looked for experiment results in various blog posts. Finally the following parameters worked well
orientations=8
pixels_per_cell=(8, 8)
cells_per_block=(2, 2)
transform_sqrt=True
I trained a linear SVM in CarClassifier class in car_classifier.py using the combined features extracted from image. The training is done in fit() method of CarClassifier class
def fit(self):
""" Fit classifier to car and not car data
"""
if os.path.isfile('model.p'):
with open('model.p', 'rb') as data_file:
data = pickle.load(data_file)
self.model = data['model']
self.scaler = data['scaler']
return self.model
x_train, y_train, x_test, y_test = self.get_data()
svc = LinearSVC(max_iter=20000)
svc.fit(x_train, y_train)
data = {
'model' : svc,
'scaler' : self.scaler
}
with open('model.p', "wb") as data_file:
pickle.dump(data, data_file)
self.model = svc
return self.model###Sliding Window Search
####1. Sliding winodw is determined to be larger when closer to camera and smaller for further distance. With different overlapping and region of interest. This is done in init() and get_windows()method VehicleDetector class in vehicle_detector.py.
def get_windows(self, x_start_stop, y_start_stop, xy_window, xy_overlap):
""" Get window bounding boxes
Attr:
x_start_stop: tuple of start and stop pixels in X direction
y_start_stop: tuple of start and stop pixels in Y direction
xy_window: window size
xy_overlap: fraction of overlap size in x, y
Returns:
bounding boxes of windows
"""
# Compute the span of the region to be searched
xspan = x_start_stop[1] - x_start_stop[0]
yspan = y_start_stop[1] - y_start_stop[0]
# Compute the number of pixels per step in x/y
nx_pix_per_step = np.int(xy_window[0]*(1 - xy_overlap[0]))
ny_pix_per_step = np.int(xy_window[1]*(1 - xy_overlap[1]))
# Compute the number of windows in x/y
nx_windows = np.int(xspan/nx_pix_per_step) - 1
ny_windows = np.int(yspan/ny_pix_per_step) - 1
# Initialize a list to append window positions to
window_list = []
for ys in range(ny_windows):
for xs in range(nx_windows):
# Calculate window position
startx = xs*nx_pix_per_step + x_start_stop[0]
endx = startx + xy_window[0]
starty = ys*ny_pix_per_step + y_start_stop[0]
endy = starty + xy_window[1]
# Append window position to list
window_list.append(((startx, starty), (endx, endy)))
# Return the list of windows
return window_list
self.windows = []
self.windows += self.get_windows(x_start_stop = (0,1280),
y_start_stop = (400,500), xy_window = (96,64),
xy_overlap = (0.75, 0.75))
self.windows += self.get_windows(x_start_stop = (0,1280),
y_start_stop = (400,500), xy_window = (192,128),
xy_overlap = (0.75, 0.75))
self.windows += self.get_windows(x_start_stop = (0,1280),
y_start_stop = (430,550), xy_window = (192,192),
xy_overlap = (0.5, 0.5))All sliding windows
####2. These windows are searched for cars within and only those having positive results are picked. This is done in get_positive_windows() method of VehicleDetector class
def get_positive_windows(self, img):
""" Get windows that have cars in it
Attr:
img: image to search within
Returns:
list of windows having cars
"""
positive_windows = []
counter = 1
for window in self.windows:
test_img = cv2.resize(img[window[0][1]:window[1][1], window[0][0]:window[1][0]], (64, 64))
# cv2.imwrite('output_images/' + str(counter) + '.jpg', test_img)
counter = counter + 1
if self.car_clf.predict(test_img) == 1:
positive_windows.append(window)
return positive_windowsThis resulted in dectecting boxes where car exists.
Sliding windows with cars
####3. Generated heat map from positive windows to determine the bounding bos where cars exist. this is done in process_image() method of VehicelDetector class
heat = self.add_heat(heat,positive_windows)
# Apply threshold to help remove false positives
heat = self.apply_threshold(heat,4)
# Visualize the heatmap when displaying
heatmap = np.clip(heat, 0, 255)
def add_heat(self, heatmap, bbox_list):
""" Add heat according to bounding box list
Attr:
heatmap: heat map initiliazed to image size
bbox_list: bounding boxes
Returns:
resulted heat map image
"""
# Iterate through list of bboxes
for box in bbox_list:
# Add += 1 for all pixels inside each bbox
# Assuming each "box" takes the form ((x1, y1), (x2, y2))
heatmap[box[0][1]:box[1][1], box[0][0]:box[1][0]] += 1
# Return updated heatmap
return heatmap
def apply_threshold(self, heatmap, threshold):
""" Apply threshold to heat image
Attr:
heatmap: calculated heat image
threshold: threshold value
"""
# Zero out pixels below the threshold
heatmap[heatmap <= threshold] = 0
# Return thresholded map
return heatmap
Heat map image
####4. Then drew final bounding box around the heat map in draw_labeled_bboxes() of VehicleDetector class
def draw_labeled_bboxes(self, img, labels):
""" Draw bounding boxes according to heat map
Attr:
img: image ot draw on
labels: labels of heat map
"""
centroids = []
# Iterate through all detected cars
for car_number in range(1, labels[1]+1):
# Find pixels with each car_number label value
nonzero = (labels[0] == car_number).nonzero()
# Identify x and y values of those pixels
nonzeroy = np.array(nonzero[0])
nonzerox = np.array(nonzero[1])
# Define a bounding box based on min/max x and y
bbox = ((np.min(nonzerox), np.min(nonzeroy)), (np.max(nonzerox), np.max(nonzeroy)))
centroid_x = (bbox[1][0] + bbox[0][0]) / 2.
centroid_y = (bbox[1][1] + bbox[0][1]) / 2.
centroids.append((centroid_x, centroid_y))
# Draw the box on the image
if self.is_tracking:
if self.does_history_exist((centroid_x, centroid_y)):
cv2.rectangle(img, bbox[0], bbox[1], (0,0,255), 6)
else:
cv2.rectangle(img, bbox[0], bbox[1], (0,0,255), 6)
self.frame_history = centroids
# Return the image
return imgFinal result

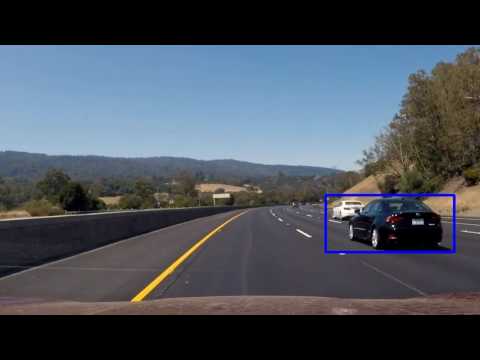

####1. This is the link to video output that has been generetaed using similar pipeline used for individual images. Here's a link to my video result
####2. To tackle false positives and overlapping bounding boxes both heatmap calculation and history tracking is used. Heat map calculation is done in process_image() method. I have used scipy.ndimage.measurements.label() to find the final boxes after threshodling.
heat = self.add_heat(heat,positive_windows)
# Apply threshold to help remove false positives
heat = self.apply_threshold(heat,4)
# Visualize the heatmap when displaying
heatmap = np.clip(heat, 0, 255)
def add_heat(self, heatmap, bbox_list):
""" Add heat according to bounding box list
Attr:
heatmap: heat map initiliazed to image size
bbox_list: bounding boxes
Returns:
resulted heat map image
"""
# Iterate through list of bboxes
for box in bbox_list:
# Add += 1 for all pixels inside each bbox
# Assuming each "box" takes the form ((x1, y1), (x2, y2))
heatmap[box[0][1]:box[1][1], box[0][0]:box[1][0]] += 1
# Return updated heatmap
return heatmap
def apply_threshold(self, heatmap, threshold):
""" Apply threshold to heat image
Attr:
heatmap: calculated heat image
threshold: threshold value
"""
# Zero out pixels below the threshold
heatmap[heatmap <= threshold] = 0
# Return thresholded map
return heatmapHeat map image
Furthermore I saved the centroids of each bounding boxes found in previous frame. I used this history to determine if a bounding box around same region in the next frame is valid or invalid by its past existence. It has benn done in does_history_exist() method of VehicleDetector class. I used euclidean distance of maximum 10 pixels as a threshold for same car apperaing in two consecutive frames. Otherwise it is a false positive
def does_history_exist(self, centroid):
for c in self.frame_history:
if euclidean(c, centroid) < 10:
return True
return False###Discussion
####1. The pipeline is very sensitive to region of interest and size of sliding windows. Cars that dont fit in window size returns incomplete bounding box. Also the pipeline is slower.
####2. In future further experimentation of sliding windows will improve both accuracy and processing time. Also history tracking can be applied to more than one previous frames for smooth detection and discarding false positives.
