Object Detector

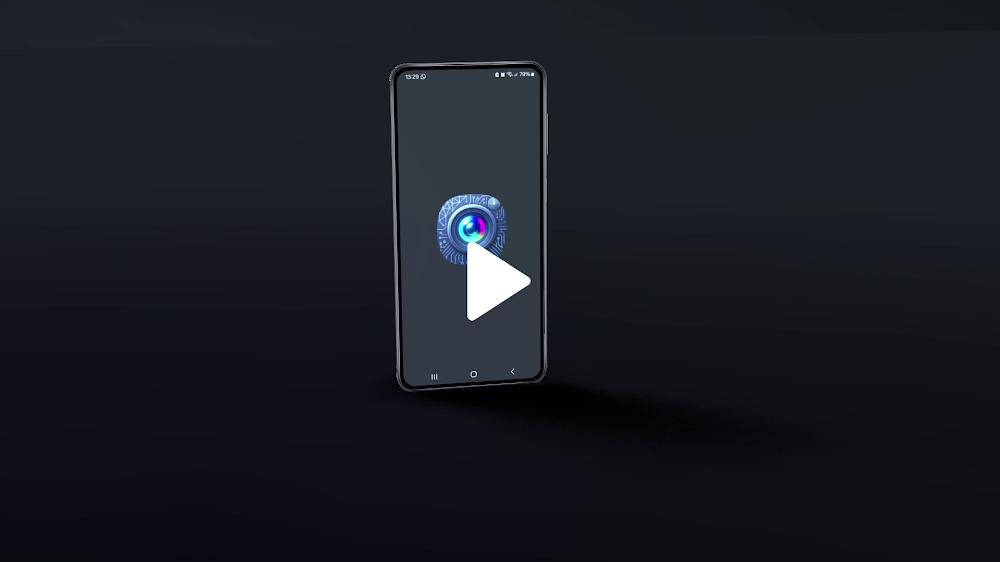

Demo πŸŽ₯

Image preview of the link not found, click to open

Main Features ✨

  • Detect very simple objects with MediaPipe
  • Ask Gemini anything about a picture taken
  • Tracks the user's achievements towards MediaPipe's detectable objects and provides a leaderboard for the users (that opted in by logging in with Google) towards those achievements. Along with statistics displaying the most detected objects.
  • It supports various customizations and other features:
    • Camera settings: ratio, flashlight and saving pictures taken
    • Model settings: detection sensitivity, max detection count, detection animations and the model itself (2 choices)
    • Notifications for achievements

Primary Technologies πŸ› οΈ

MediaPipe Gemini API Ktor Firebase
  • An open-source framework that facilitates the integration of AI & ML, made by Google. It's mostly geared towards lightweight devices or "edge devices" (mobile devices and embedded systems) and its cross-platform.
  • MP supports models authored in LiteRT (formelly known as TensorFlow Lite (TFLite)), which is a framework and runtime for on-device AI that's also built by Google. LiteRT also supports models authored in PyTorch by converting them
  • Here's a showcase of the tasks MediaPipe supports
  • I'm using the Object Detection Mediapipe dependency and the provided pre-trained models of the family "EfficientDet" developed by Google. These models can detect these 80 objects
  • You can learn more about object detection and in making your own model through these DeepLearningExamples repository by NVIDIA (example with PyTorch)
  • A RESTful API for performing HTTP requests to a Gemini model, running in Google Cloud Platform. Doesn't require a GCP project, although you can associate it to one or monitor the use of your API key
  • Pricing: It has a reasonable free tier of 1.5k requests per day and other limits for Gemini 2.0 Flash. See it's capabilities and various details
  • An open-source framework developed by JetBrains to create HTTP servers or clients
  • I only use it's client component, in order to make HTTP calls to the Gemini API
  • I use the built-in JSON serializer for sending and receiving (@Serializable) objects
  • A cloud platform or BaaS (Backend As A Service) that provides a wide range of utilities for different environments (and programming languages) via SDK's (Software Development Kits) for each one. Firebase runs on Google Cloud infrastructure, but it contains Firebase-specific configurations and services
  • I use it to store the achievement leaderboard of the users using Cloud Firestore, which is a NoSQL document database. And also Firebase Authentication is used in order to sign-in users with Google
  • Cloud Functions are used to make use of Firestore triggers to update the user leaderboard and the object stats on document changes, and it requires setting up a Pay as you go (Blaze) billing plan (and you'll only have to pay after thousands of requests per day)
  • Check pricing here. The pay-start ceiling for Cloud functions is very high for the use case of the app, so it's basically free. You can also use the 300$ trial

Secondary Technologies πŸ› οΈ

Koin Coil Mockk Lottie Jetpack Compose UI Test
For dependency injection For efficient & flexible image loading For object mocking in tests For animated graphics For instrumented tests

Plugins Used & Other Dependencies πŸ”Œ

Gradle Plugins 🐘

  • gradle-download-task by Michel KrΓ€mer -> To facilitate the download of the small TFlite ML models. It is ran automatically after building the project. In gradle tool window, access these 2 tasks in the category "other"
  • Kotlin Serialization -> Used to process Kotlin's @Serialization annotations, so that certain objects have a serializable format so they can be used by Ktor and some DataStore (preferences) objects
  • Kotlin Symbol Processing (KSP) -> Used to process Koin's and Room's annotations, so that it generates code that allows these libs to run properly
  • Dokka -> Documentation engine for KDoc comments. Run it via ./gradlew app:dokkaHtml. Or in gradle tool window, access it in the task category "documentation"
  • Google Services -> Used to process the google-services.json file and build other resources for the Firebase SDK to work

Other Dependencies πŸ“š

Core Tech Use Throughout The App

More details

Setup Guide πŸ™Œ

Note

Minimum Android version: 11 (API level 30)

Option 1 - Download ⬇️

Get the app from the .apk file in releases. Built with Github Actions.

Option 2 - Build from source πŸ”¨

  • Download Android SDK or Install Android Studio (which comes with the Android SDK) and add the following line to the local.properties file (ceate if AS didn't create it, in the root of this project) to point to it. Per example sdk.dir=/home/p4ulor/Android/Sdk
  1. Config πŸ”§
    • Decide if you want to comment out all firebase code so you don't have to create a firebase project or create your own and add your google-services.json file inside app/. Then try building the project
    • Connect your phone to the PC and run in a terminal at the root directory ./gradlew app:installDebug
    • Or ./gradlew assembleDebug to build a debug version, which will output an .apk file to app/build/outputs/apk/debug
    • For more info on building a signed .apk see docs
  2. Get Gemini API Key πŸ”‘
    • Get it at Google AI Studio. There's a link to this in the app too so you can better copy paste it from your phone's browser
  3. When you're finished πŸ—‘
    • If you logged in into the leaderboard, you can clear your data like so:
    1. Delete your account through the app. This will delete your account entry at the Firebase level
    2. Go to My Google Account -> Security -> Your connection to third-party apps & services. And look for Object Detector. This will completely clear you account entry at your Google Account level

Important

If the app isn't detecting objects with MediaPipe make sure you downloaded the models (should be performed automatically after a build via finalizedBy)

  • ./gradlew _download1
  • ./gradlew _download2

Tip

The app is pretty solid, it's well documented, has a good structure, covers lots of topics, includes many composable previews, etc.

I learned a lot and had so much fun. I hope you enjoy it too

IT'S LIT! πŸ”₯
