clstm

Making the project

Putting this together took a lot of trial-and-error. Here are the steps... just in case.

1. Create a static cocoa touch lib (iOS)

2. Add all of the *.cc and *.h files from clstm

3. Add the clstm.proto from clstm

4. Add in the headers by adding Eigen and unsupported folders into the project (these came from my brew installation at /usr/local/include/eigen3/)

5. Add $(PROJECT_ROOT) to the header search paths (so it can find those Eigen headers)

6. Add macros.h

   #ifndef macros_h
   #define macros_h

   #define THROW throw
   #define TRY try
   #define CATCH catch
   #define NODISPLAY 1
   #define CLSTM_ALL_TENSOR 1

   #endif /* macros_h */

7. Set a return value for print_usage in clstmocr.cc and clstmtrain.cc

   return 0;

8. include macros.h in all of the failing files (pstring.h, tensor.h, utils.h)

9. In extras.cc you need to change:

   #include <png.h>

   to

   #include "png.h"

10. Include libpng via cocoapods, and in pngpriv.h comment out:

    // #ifndef PNG_ARM_NEON_OPT
    // ...
    // #endif

    And add in:

    #define PNG_ARM_NEON_OPT 0

11. Set ENABLE_BITCODE to NO in the project settings

Compiling Protobuf

Follow this guide: https://gist.github.com/jeffrafter/e00601fdbce17add0f9e0a06d4e69aec

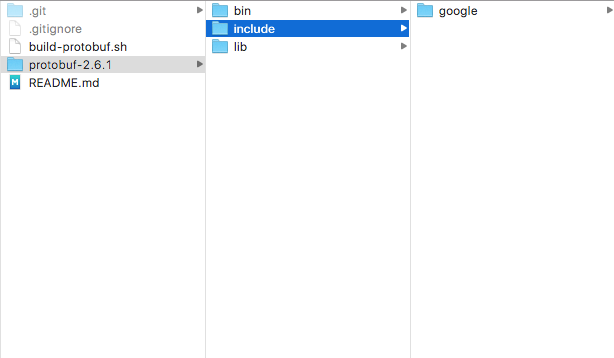

You'll endup with a compiled protobuf library (2.6.1) which is compatible with clstm (it is not built for 3.x):

1. Copy the google folder from include into your project.
2. Copy the protoc binary (in bin) into your project
3. Copy the libprotobuf.a into your project under a Frameworks group.
4. Make sure that the lib is added to Build Phases.

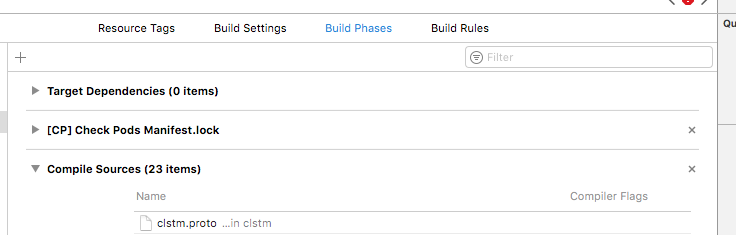

5. Add clstm.proto to the compile sources:

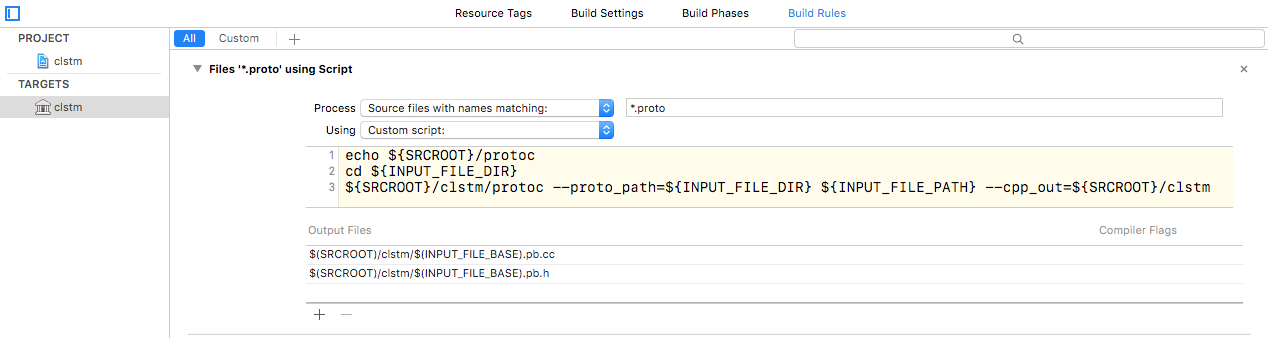

6. Add in the protoc build rule:

echo ${SRCROOT}/protoc
cd ${INPUT_FILE_DIR}
${SRCROOT}/clstm/protoc --proto_path=${INPUT_FILE_DIR} ${INPUT_FILE_PATH} --cpp_out=${SRCROOT}/clstm

Make it usable from Swift

In order to use this from a briding header, it is easiest to create a C function that calls the C++. Add a clstmocr.cpp and clstmocr.hpp. This also allows us to hide the internals of protobufs, Eigen and friends from the project that includes the build lib.

//
//  clstmocr.cpp
//  clstm
//
//  Created by Jeffrey Rafter and Tyler Davis on 1/24/17.
//  Copyright © 2017 Jeffrey Rafter and Tyler Davis. All rights reserved.
//

#include "clstmocr.hpp"

#include "clstm.h"
#include "clstmhl.h"
#include <time.h>


// extern "C" will cause the C++ compiler
// (remember, this is still C++ code!) to
// compile the function in such a way that
// it can be called from C
// (and Swift).
extern "C" const char * clstm_recognize(const char * model_file_name, const char * image_file_name)
{

    ocropus::Tensor2 raw;

    ocropus::CLSTMOCR clstm;

    clock_t start, end;
    double cpu_load_time, cpu_png_time, cpu_predict_time;

    // Load the model
    start = clock();
    clstm.load(std::string(model_file_name));
    end = clock();
    cpu_load_time = ((double) (end - start)) / CLOCKS_PER_SEC;


    // Read the image
    start = clock();
    read_png(raw, image_file_name);
    raw() = -raw() + ocropus::Float(1.0);
    end = clock();
    cpu_png_time = ((double) (end - start)) / CLOCKS_PER_SEC;


    // Convert to text
    start = clock();
    std::string out = clstm.predict_utf8(raw());
    end = clock();
    cpu_predict_time = ((double) (end - start)) / CLOCKS_PER_SEC;

    // If you want timing
    // out = out + "(load: " + std::to_string(cpu_load_time) + ", png: " + std::to_string(cpu_png_time) + ", predict: " + std::to_string(cpu_predict_time) + ")";

    char * ret = new char[out.length() + 1];
    std:strcpy(ret, out.c_str());

    return ret;
}

This is essentially a copy of the clstmocr calls. We've changed all of the input calls to use const char * so it is easier to interact with externally.

//
//  clstmocr.hpp
//  clstm
//
//  Created by Jeffrey Rafter and Tyler Davis on 1/24/17.
//  Copyright © 2017 Jeffrey Rafter and Tyler Davis. All rights reserved.
//

#ifndef clstmocr_hpp
#define clstmocr_hpp

#include <stdio.h>

extern "C" const char * clstm_recognize(const char * model_file_name, const char * image_file_name);

#endif /* clstmocr_hpp */

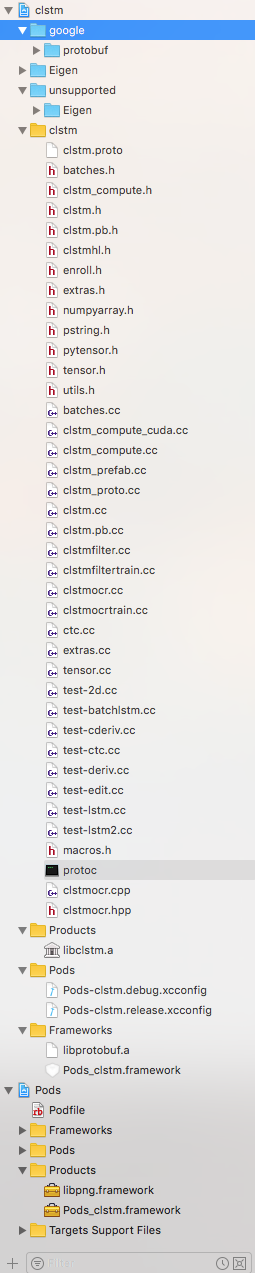

Project layout
