Trajectory Replanning Using RRT* and Circular Buffer

This repo is for exploring PX4 SITL & HITL Mode and UAV trajectory replanning using RRT* in Ewok-Replanning RRT*

---

1. Download Repository and all of its submodules

Pull all of the repo and its submodule using

git clone --branch melodic-dev --recurse-submodules https://github.com/haritsahm/PX4-TrajectoryReplanning.git

check if these folder is inside src: ewok, mavros_controllers, px4, and px4_trajectory_replanning, px4_simulation

After that run this command to download the submodules

git submodule update --init --recursive

After everything is finished, we need to create a symlink from src to the mavlink_sitl_gazebo inside px4/Tools if its not available.

cd src/ # move to src directory
ln -s px4/Tools/sitl_gazebo/ mavlink_sitl_gazebo

---

2. Build workspace using python3

Because several packages generate the same target directory, we use catkin build to avoid these errors. Suggested by Effective Robotics Programming with ROS - Third Edition#1

A. From terminal on workspace directory

Build workspace using python3 interpreter from terminal

catkin build --cmake-args -DPYTHON_EXECUTABLE=/usr/bin/python3 -DBUILD_ROS_INTERFACE=ON --make-args -j4

B. Using Qt Creator

Similar to Setup Qt Creator for ROS by Levi Armstrong

1. First open the project, then navigate to the Projects > Build Settings
2. Remove existing "Build Steps".
3. Add a custom build step Add Build Step > Custom Process Step as shown below.
   • Command: /usr/local/bin/catkin
   • Arguments: build --cmake-args -DPYTHON_EXECUTABLE=/usr/bin/python3 -DBUILD_ROS_INTERFACE=ON --make-args -j2
   • Working directory: %{CurrentProject:Path}
4. Remove existing "Clean Steps".
5. Add a custom clean step Add Clean Step > Custom Process Step as shown below.
   • Command: /usr/local/bin/catkin
   • Arguments: clean
   • Working directory: %{CurrentProject:Path}

---

3. Running Simulation

A. Plain RRT Simulation

Use rviz to vizualize the simulation

rviz -d src/ewok/ewok_simulation/rviz/simulation_rrt.rviz

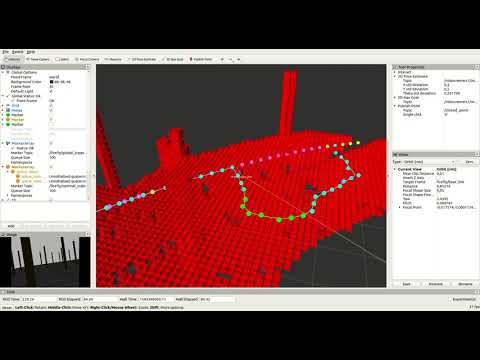

1. run this to command to simulate in cones

roslaunch ewok_simulation trajectory_replanning_simulation_rrt.launch

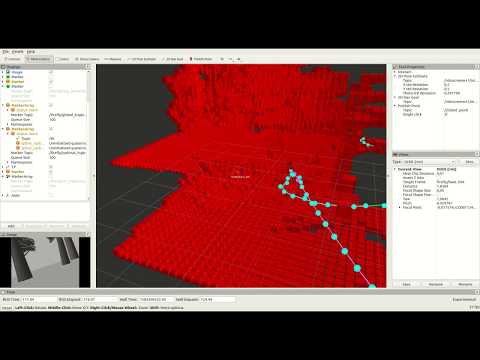

2. run this to command to simulate in Forest

roslaunch ewok_simulation trajectory_replanning_forest_rrt.launch

---

B. Using PX4 SITL Mode

1. Run the Gazebo PX4 SITL mode

Please run this everytime you want to connect it with offboard controller or after editing the offboard controller

roslaunch px4_trajectory_replanning px4_gazebo_cones.launch

2. Run Rviz

roslaunch px4_trajectory_replanning px4_rviz.launch

3. Run the Offboard Controller

This is the main offboard controller

roslaunch px4_trajectory_replanning px4_offboard_controller.launch

4. Run the Offboard Interface

roslaunch px4_trajectory_replanning px4_offboard_interface.launch

Wait for a few seconds until the mode status is filled.

• Press the offboard button to change the pixhawk mode to offboard control
• wait for 3 seconds and then send any desired tasks
• Do not start the mission instruction before the replanning system is running

5. Run the Replanning System

roslaunch px4_trajectory_replanning trajectory_replanning_rrt.launch

##License

This project is licensed under the GNU Lesser General Public License Version 3 (LGPLv3). The interface was developed using Qt Designer and Qt Creator. They are licensed under GNU General Public License Version 3 (GPLv3). The interface is using Qt Core, Qt Gui, and Qt Widgets Framework APIs licensed udner the GNU Lesser General Public License Version 3 (LGPLv3). Ewok is licensed under the GNU Lesser General Public License Version 3 (LGPLv3). Pixhawk Firmware and Middleware is licensed under BSD-3-Clause License. For full license details, refer to the license file in the library's directory.
