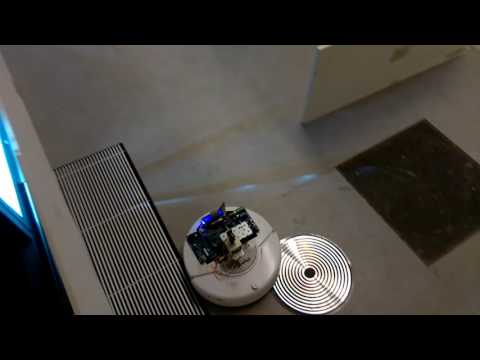

Click on the image for a video demonstration of the robot traversing the maze
This project uses a PIC-16F877A micro-controller and Xilinx XC9572XL CPLD to navigate an 'iRobot Create' through a maze, finding 'victims' and alerting the operator. The main requirements of the project were as follows:
- Operate autonomously during the mission. There should be no user intervention or control other than pressing the start button.
- Search for and locate ‘victims’ within the maze. The victims will be marked with the home-base beacons, but their location is otherwise unknown.
- After locating a victim, play a song to indicate that the victim has been found. The robot should resume exploring the maze to find the second victim.
- After finding the second victim, the robot should return to its starting location by taking the shortest path back.
- Avoid walls and respond appropriately to virtual walls while carrying out the tasks required for each mission.
A top down representation of the maze space can be viewed here.
Using the integrated PIC-16F877A and XC9572XL CPLD chip on the D5 Series DSX Kit, a variety of peripheral devices were connected through the PORTs located on the board. These include...
- Infrared sensor: For measuring distance between robot and wall.
- Stepper Motor: For controlling the direction of the infrared sensor (360 degree field of view).
- Tactile push buttons: For operator interaction with the robot.
- LCD Display: To alert the operator and display debug output.
The software architecture of the project was designed with modularity in mind. Key functionality includes...
- BNT: Concerned with controlling buttons within the system (this includes debouncing).
- LED: Controls Light Emitting Diodes.
- SPI: Defines an interface to the SPI available on the PIC.
- ADC: Defines an interface to the Analog to Digital Converter on the PIC.
- USART: Defines an interface for serial communication (key method of communication between the iRobot and the PIC).
- SM: Interface for Stepper Motor movement.
- IR: Interface for obtaining distance measurements from the IR sensor.
- PATH: Module dedicated to calculating paths between waypoints in the maze, and tracking the robot's movement.
- MOVE: Interface for robot movement (driving, rotating, checking sensors).
- IROBOT: Module dedicated for maze exploration and navigation.
