How-to-dynamically-fetch-and-display-items-from-an-API-in-.NET-MAUI-Autocomplete

This repository contains a sample explaining how to dynamically fetch and display items from an API in .NET MAUI Autocomplete.

Step 1: Define the User Interface

In the MainPage.xaml, configure the visual interface by placing a Autocomplete control inside an outlined TextInputLayout. This setup creates an intuitive search input field with a material design outline. We define a customized ItemTemplate to display the contact's name, title, city, and country in a structured format, giving users contextual information while selecting.

The key customization here is attaching a CustomFilterBehavior, which triggers API calls based on user input—making the UI reactive and data-driven.

<?xml version="1.0" encoding="utf-8" ?>
<ContentPage xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
            xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
            xmlns:filter="clr-namespace:AutocompleteSample.CustomFilter"
            xmlns:vm="clr-namespace:AutocompleteSample.ViewModel"
            xmlns:editors="clr-namespace:Syncfusion.Maui.Inputs;assembly=Syncfusion.Maui.Inputs"
            xmlns:inputlayout="clr-namespace:Syncfusion.Maui.Core;assembly=Syncfusion.Maui.Core"
            x:Class="AutocompleteSample.MainPage">

   <ContentPage.BindingContext>
       <vm:CustomerViewModel/>
   </ContentPage.BindingContext>

   <VerticalStackLayout Padding="30,0" Spacing="25">
       <inputlayout:SfTextInputLayout ContainerType="Outlined"
                                      ShowHint="False"
                                      ReserveSpaceForAssistiveLabels="False"
                                      Padding="0,-2,0,0"
                                      OutlineCornerRadius="8"
                                      IsHintAlwaysFloated="True"
                                      WidthRequest="360"
                                      HeightRequest="60">
           <editors:SfAutocomplete NoResultsFoundText=""
                                   DropDownBackground="WhiteSmoke"
                                   DropDownStroke="Black"
                                   DropDownItemHeight="54"
                                   PlaceholderColor="#283618"
                                   ClearButtonIconColor="#283618"
                                   TextSearchMode="Contains"
                                   Placeholder="Search by Customer Name/Designation/Country"
                                   DisplayMemberPath="ContactName"
                                   ItemsSource="{Binding OrderedItems}">
               <editors:SfAutocomplete.FilterBehavior>
                   <filter:AutocompleteCustomFilter/>
               </editors:SfAutocomplete.FilterBehavior>
               <editors:SfAutocomplete.ItemTemplate>
                   <DataTemplate>
                       <Grid Padding="10" RowDefinitions="Auto,Auto">
                           <HorizontalStackLayout Grid.Row="0" Spacing="2">
                               <Label Text="{Binding ContactName}"
                                      FontAttributes="Bold"
                                      VerticalOptions="Center"
                                      FontSize="16"
                                      TextColor="Black"/>
                               <Label Text=" - " VerticalOptions="Center" FontSize="12"/>
                               <Label VerticalOptions="Center"
                                      Text="{Binding ContactTitle}"
                                      FontAttributes="Bold"
                                      FontSize="12"
                                      TextColor="Black"/>
                               <Label Text="&#xe78c;"
                                      VerticalOptions="Center"
                                      FontSize="14"
                                      Padding="4,0"
                                      TextColor="#50D072"
                                      FontFamily="MauiMaterialAssets"/>
                           </HorizontalStackLayout>
                           <HorizontalStackLayout Grid.Row="1" Spacing="2">
                               <Label Text="&#xe71c;"
                                      VerticalOptions="Center"
                                      FontSize="14"
                                      Padding="4,0"
                                      TextColor="Green"
                                      FontFamily="MauiMaterialAssets"/>
                               <Label Text="{Binding City}"
                                      FontSize="12"
                                      VerticalOptions="Center"/>
                               <Label Text=" , " VerticalOptions="Center" FontSize="12"/>
                               <Label VerticalOptions="Center"
                                      Text="{Binding Country}"
                                      FontSize="12"
                                      TextColor="Black"/>
                           </HorizontalStackLayout>
                       </Grid>
                   </DataTemplate>
               </editors:SfAutocomplete.ItemTemplate>
           </editors:SfAutocomplete>
       </inputlayout:SfTextInputLayout>
   </VerticalStackLayout>
</ContentPage>

Step 2: Set Up Model and ViewModel

This step establishes the data structure and binding logic:

• The Customer class models the shape of the data retrieved from the API. It includes all the properties returned from the Northwind service (like CustomerID, ContactName, City, Country, etc.).
• The ODataResponse<T> generic class represents the structure of the JSON returned by the API.
• The CustomerViewModel holds the CustomerDetails collection and implements INotifyPropertyChanged to support dynamic data binding.

This MVVM setup ensures clean separation between UI and data logic while enabling the Autocomplete control to reflect data changes in real-time.

// Model class
public class Customer
{
   public string CustomerID { get; set; }
   public string CompanyName { get; set; }
   public string ContactName { get; set; }
   public string ContactTitle { get; set; }
   public string Address { get; set; }
   public string City { get; set; }
   public string Region { get; set; }
   public string PostalCode { get; set; }
   public string Country { get; set; }
   public string Phone { get; set; }
   public string Fax { get; set; }
}

// OData response structure
public class ODataResponse<T>
{
   public List<T> value { get; set; }
}

// ViewModel
public class CustomerViewModel : INotifyPropertyChanged
{
   public ObservableCollection<Customer> CustomerDetails { get; set; }

   public CustomerViewModel()
   {
       CustomerDetails = new ObservableCollection<Customer>();
   }

   public event PropertyChangedEventHandler? PropertyChanged;
   protected virtual void OnPropertyChanged(string propertyName)
   {
       PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propertyName));
   }
}

Step 3: Implement Custom Filter Behavior

Here’s where the dynamic fetching logic comes in:

• The AutocompleteCustomFilter class implements IAutocompleteFilterBehavior, letting you define a custom matching strategy.
• When the user types text, the overridden GetMatchingItemsAsync method is invoked. It uses HttpClient to asynchronously call the Northwind OData API, applying a startswith filter on the ContactName, ContactTitle, and Country fields.
• The API response is parsed into a list of Customer objects, and only the top 5 matches are returned to avoid overloading the UI.
• Assign the AutocompleteCustomFilter to the FilterBehavior property of the Autocomplete control in the XAML layout.

The use of CancellationTokenSource ensures only the latest request is processed, avoiding race conditions or unnecessary API calls when users type quickly.

public class AutocompleteCustomFilter : IAutocompleteFilterBehavior
   {
       private CancellationTokenSource? _cts;

       public async Task<object?> GetMatchingItemsAsync(SfAutocomplete autocomplete, AutocompleteFilterInfo filterInfo)
       {
           // Cancel any ongoing request
           _cts?.Cancel();
           _cts?.Dispose();
           _cts = new CancellationTokenSource();
           var cancellationToken = _cts.Token;

           if (autocomplete != null)
           {
               var text = filterInfo.Text ?? string.Empty;
               using (HttpClient client = new HttpClient())
               {
                   string filter = $"$filter=startswith(ContactName, '{text}') or startswith(ContactTitle, '{text}') or startswith(Country, '{text}')";
                   string requestUrl = $"https://services.odata.org/V4/Northwind/Northwind.svc/Customers?{filter}&$format=json";
                   try
                   {
                       HttpResponseMessage response = await client.GetAsync(requestUrl, cancellationToken);
                       response.EnsureSuccessStatusCode();

                       string jsonResponse = await response.Content.ReadAsStringAsync(cancellationToken);
                       var odataResponse = JsonSerializer.Deserialize<ODataResponse<Customer>>(jsonResponse);

                       List<Customer> customers = odataResponse?.value?.Take(5).ToList() ?? new List<Customer>();
                       return customers;
                   }
                   catch (OperationCanceledException)
                   {
                       // Request was cancelled, return empty list
                       return new List<Customer>();
                   }
                   catch (Exception ex)
                   {
                       // Log or handle exception
                       return new List<Customer>();
                   }
               }
           }
           return new List<Customer>();
       }
   }

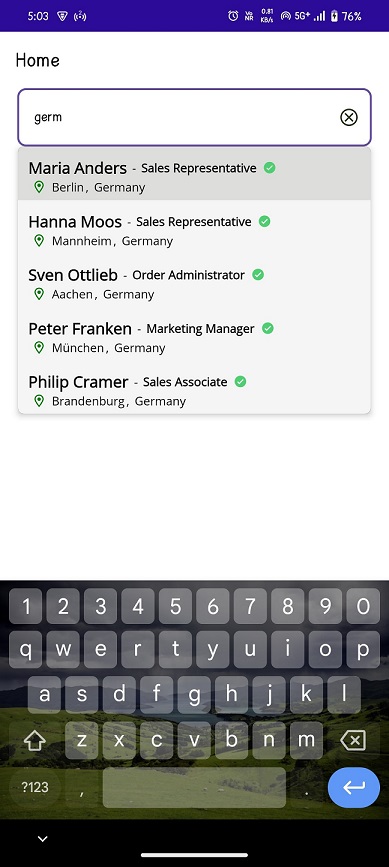

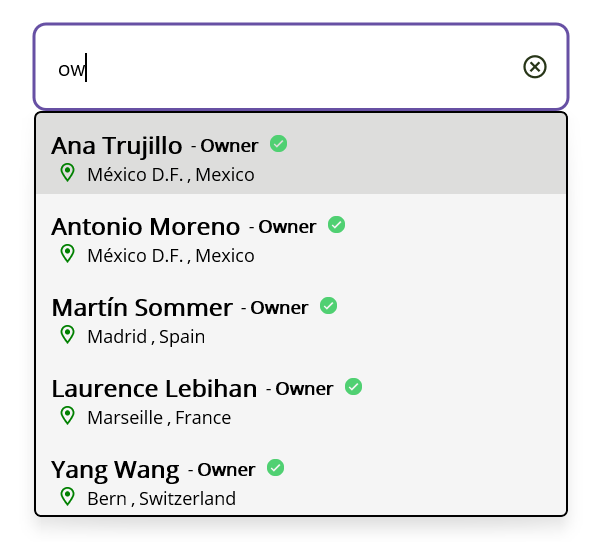

Output:
