16n editor

The 16n editor allows you to edit the configuration of your 16n from within a web browser. It supports 16ns running firmware 2.0.0 and up.

The 16n editor is a Javascript app based around SvelteKit.

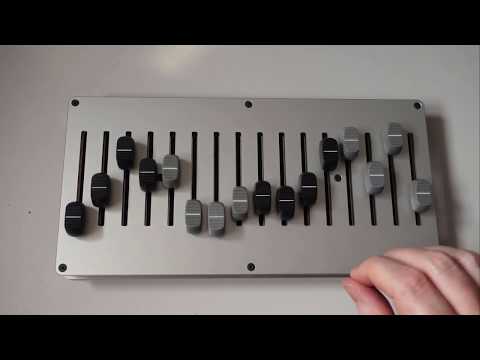

Here's a video walkthrough:

Version 2.0.0 of the editor is a large overhaul, with a few goals:

• bring the codebase up-to-date with SvelteKit 1.x
• replace Javascript with Typescript throughout
• replace unpleasant attempts at object-orientation with a more ECMAScript-like code style, focused on modules exporting functions and POJOs.
• replace confusing (an understatement) message-passing, and focus on a more SvelteKit like way of doing things: put functions into the modules or components calling them, directly manipulate stores, and assume stores are a global store of truth.

The result is a little more readable by most JS developers, and we gain a lot of convenience as well as belt/braces security from the move to Typescript.

Version 2.1.0 of the editor brings the project up to Svelte 5, and adds support for 14-bit MIDI CCs if the device has appropriate firmware.

Build Requirements

• Node.js v22+ (LTS)
• pnpm (preferred for performance, storage reasons.)

Usage Requirements

• As a WebMIDI app, you need a client that can support it. That basically means Chrome right now.
• A 16n running firmware v2.0.0 or higher, or a 16nx running firmware v3.0.0 or higher

Installation

pnpm install

Running the development environment

pnpm run dev

This will run a development environment at localhost:5173, with live reloading enabled.

By default, the server will only respond to requests from localhost.

Building and running in production mode

To create an optimised version of the app:

pnpm run build

This will emit a production build, as a purely static site, to build/. You can run this version of the code with pnpm run preview.

Deployment

The built site (in /build) is copied over to the 16n repository and deployed from there.

Code formatting

We use prettier for code formatting. From your local directory:

pnpm run format

will prettify the src/ directory. Code that fails Prettier's formatting standards will block merge at Github.

We're using a similar approach to the one Simon Willison describes here.

Code linting is handled with ESLint, and code must meet the Prettier formatting standards in order to lint:

pnpm run lint

Project Structure

• the main page of the site is src/routes/+page.svelte. This performs basic WebMidi setup and hosts the two main "modes" of the site, represented as components src/routes/Viewing.svelte and src/routes/Editing.svelte. (These are stored within the 'route' directory as they're more like pages - supercomponents - than traditional Svelte components)
• src/lib/components contains all components; these are all UI elements. In general, they will reach out directly to any stores they need to address.
• src/lib/configuration.ts is a module exporting a set of functions for parsing and processing configuration data - generating a configuration POJO from a sysex array, comparing two configuration POJOs to see if they are identical.
• src/lib/import_export.ts exports functions to request a user for a JSON file and load it as a config - and to take the current config and offer it as a downloadable file. (These functions are used by DOM element button components).
• src/lib/logger.ts is a convenience function to log items to the console in development mode.
• src/lib/state contains the various global reactive state objects that will be used throughout the application (see later)
• src/lib/types.ts exports custom types used within the application: notably, individual Control items, and an entire ControllerConfiguration
• src/lib/midi/midi.svelte.ts exports all the necessary functions to listen to MIDI ports as they connect/disconnect, request 16n configs from appropriate devices, and listen to individual events from the connected devices.
• src/lib/midi/sysex.ts exports all the necessary functions to send the various System Exclusive messages a 16n supports.

State

We previously used Svelte Stores to store state and react to state change; as of Editor v2.1.0, we now use reactive state objects to do so.

src/lib/state contains two main .svelte.ts files for the two types of reactive data we want to know about: stuff to do with controller configuration, and stuff to do with MIDI I/O.

Inside the configuration stateful object, exported by src/lib/state/configuration.svelte.ts, there are a few key sub-objects:

• configuration.current describes the current Configuration being shown in Viewing mode.
• configuration.controllerMightNeedFactoryReset represents if the current 16n isn't quite configured right.
• configuration.editing is the current configuration being edited in Editing mode.
• configuration.editMode is a boolean representing if the editor is in Editing mode or not.

Inside the midiState stateful object, exported by src/lib/state/midi.svelte.ts, are:

• midiState.inputs and midiState.outputs describes the currently connected MIDI input/output ports.
• midiState.selectedInput and midiState.selectedOutput represent the actual port that's used to talk to a 16n.
• midiState.webMidiEnabled is a boolean representing if the current browser supports WebMidi.

Reactive state can be used both in Svelte components and in .svelte.ts files.

Icons

Icons are from FontAwesome. FA Code is MIT licensed; font files are licensed under the SIL Open Font License.

Licensing

Editor code, like the rest of 16n sourcecode, is released under the MIT License; see LICENSE for more details.
