Scene conversion

Tutorial Overview

Table of contents

• Regular conversion
• Alternative conversion
• Good ol' JSON
• Dealing with failed conversions

Regular conversion

To convert scenes in your project to a new version, you need to update the plugin (by replacing the contents of addons/dreadpon.spatial_gardener) and start up your project.

Steps:

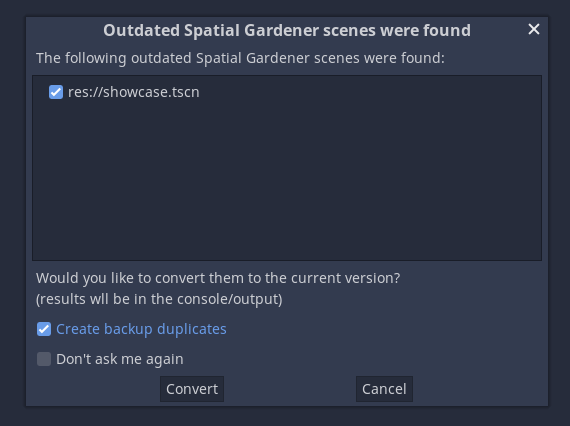

1. Plugin will automatically discover potential candidates for a conversion and show a popup, asking for confirmation.
   • ]
   • NOTE: in case it didn't, make sure your plugin is enabled and project setting dreadpons_spatial_gardener/plugin/scan_for_outdated_scenes is set to true. Then relaunch your project. If this didn't help, refer to Alternative conversion.
2. By default, conversion will create backups of your scenes with the .backup extension.
   • This can be disabled with Create backup duplicates checkbox.
3. Spatial Gardener will check for outdated scenes on each start up of your project.
   • This can be disabled (to speed up the loading process) with Don't ask me again checkbox.
4. Select the scenes you'd like to convert and press Convert button.
   • The editor will freeze for a while: the best way to keep track of your progress is by launching the editor from console (or by running Godot_v***-stable_win64_console.cmd included in the official download).
   • The process takes about 1-10 minutes per scene, depending on it's size.
5. You will receive a popup once conversion is done.
   • Make sure to move backups elsewhere before committing to source control.
6. If it failed, you will probably see errors in your console.
   • Before opening an Issue on GitHub, try consulting the Alternative conversion, Good ol' JSON or Dealing with failed conversions.

Alternative conversion

This method can be helpful if automatic scanning failed to recognize a scene in need of conversion. If actual errors occured, try fixing the conversion by consulting the Good ol' JSON or Dealing with failed conversions.

Steps:

1. Make sure the plugin is updated to the most recent version
2. Copy your scenes to addons/dreadpon.spatial_gardener/scene_converter/input_scenes folder.
   • Make sure they have a plain text scene file format (.tscn).
   • The scene converter automatically makes backups of your scenes. But you should make your own, in case anything goes wrong.
3. Editor might scream that there are resources missing. This is expected.
   • You might see a message that some plugin scripts are missing. Ignore, since some things did get removed in a plugin.
   • That's why you should not open these scenes for now.
4. Open the scene found at addons/dreadpon.spatial_gardener/scene_converter/scene_converter.tscn.
5. Launch it (F6 by default): it will start the conversion process.
   • The process takes about 1-10 minutes per scene, depending on it's size.
6. If any errors occured, you'll be notified in the console.
   • The editor will freeze for a while: the best way to keep track of your progress is by launching the editor from console (or by running Godot_v***-stable_win64_console.cmd included in the official download).
7. If conversion was successful, grab your converted scenes from addons/dreadpon.spatial_gardener/scene_converter/output_scenes folder and move them to their intended places.
8. You should be able to launch your converted scenes now.
   • Optionally, you might have to relaunch the project and re-enable the plugin.
   • Make sure to move backups elsewhere before committing to source control.

If you got this far, you should probably open an issue on GitHub.

Good ol' JSON

New to Spatial Gardener v.1.1.1 is the ability to export plant placement data as JSON.

Steps:

1. First, backup all the scenes you're planning to convert.
2. Sownload the Spatial Gardener v.1.1.1. It is compatible with scenes made in previous versions.
3. Open the scene you'd like to convert.

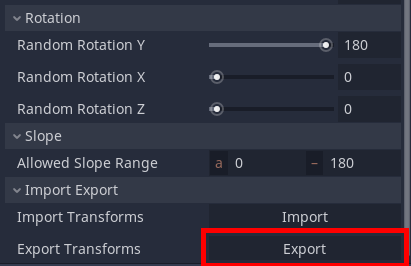

4. For each Gardener and each plant in this scene, go to plant settings, scroll to the bottom and press Export Transforms.
   •
5. Select the folder, set file name and press Save.
   • You should probably export outside of your project directory.
   • At this point you should have a bunch of individual JSON files. E.g. if you have 2 Gardeners in your scene, 3 plants each, you would have 6 JSON files.
6. Upgrade Spatial Gardener to the version, when NEXT storage specification change occured
   • Storage v.1: plugin v.1.0.0 - v.1.1.1
   • Storage v.2: plugin v.1.2.0 - now
7. Open your scenes. The editor will scream errors, that's fine.
8. Clear your Gardeners by deleting them or the Arborist nodes.
9. Save and re-open the scene. Recreate the Gardeners in case you deleted them.

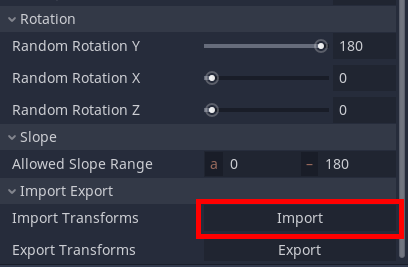

10. For each Gardener and each plant in the scene, go to plant settings, scroll to the bottom and press Import Transforms.
    •
11. Select the files you exported previously and click Open.
12. Once you do that for every file, your scene should have your plants in the same positions.
13. Repeat steps 6-12 until you end up at the most recent plugin version.

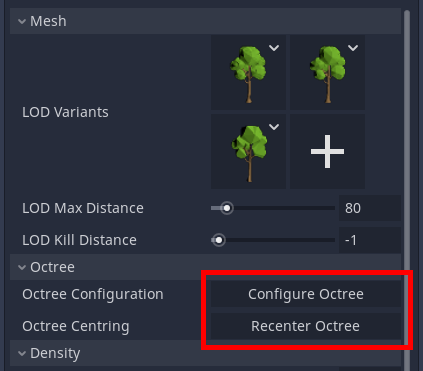

14. You might need to Rebuild and Recenter your octrees after converting, because Octree data will be inevitably lost.
    •

If this fails too, proceed to the last resort: Dealing with failed conversions.

Dealing with failed conversions

The obvious

First thing you should do is inspect the console. If you have enough experience with Godot, you might be able to troubleshoot yourself. In case Godot crashes, it's logs can be found at user:// directory.

• C:\Users\<user name>\AppData\Roaming\Godot\app_userdata\<project name>\logs on Windows by default

If you changed your logging settings somehow, scene converter also stores converter-specific logs at user://sg_tscn_conversion_<timestamp>.txt (but they will lack the verbosity of editor logs).

• C:\Users\<user name>\AppData\Roaming\Godot\app_userdata\<project name>\sg_tscn_conversion_<timestamp>.txt on Windows by default

If that's not enough, you might want to try and convert manually (or at least fix the mistakes that converter made).

For that you'll need to understand which data is converted and how.

Converter overview

1. First we have the parser.

   • It goes over the entire .tscn file and finds individual "tokens" that represent functional units of the scene file. They include property names, property values, bracket symbols, strings, numbers and more.
   • It then converts these tokens into individual Dictionaries that represent separate Nodes or Resources.
   • It's a "quick and dirty" parser, and thus can give flawed results. This is the weakest link in the conversion process.

2. Then we have the versioned converters.

   • They go over said Dictionaries and convert the data to fit a particular storage version of the plugin.

3. And finally, the scene is reassembled once again from the adapted Dictionaries.

You might want to compare two scene files: before conversion and after. Perhaps there is some data unrelated to Spatial Gardener that is missing or corrupted? I recommend using a VSCode's built-in comparison tool for that.

You can then manually patch the missing/corrupted data.

If the damage is too big, try Godot's Save branch as scene on the original, unconverted scene. By saving some parts of it to separate files, you reduce the complexity that the converter has to work with. You can even go as far as saving the Gardener node itself to a separate scene, so it's the only thing present at all! This should greatly simplify parser's task.

In case it's not working, you might want to understand how the data itself is converted.

Storage v.1 -> Storage v.2

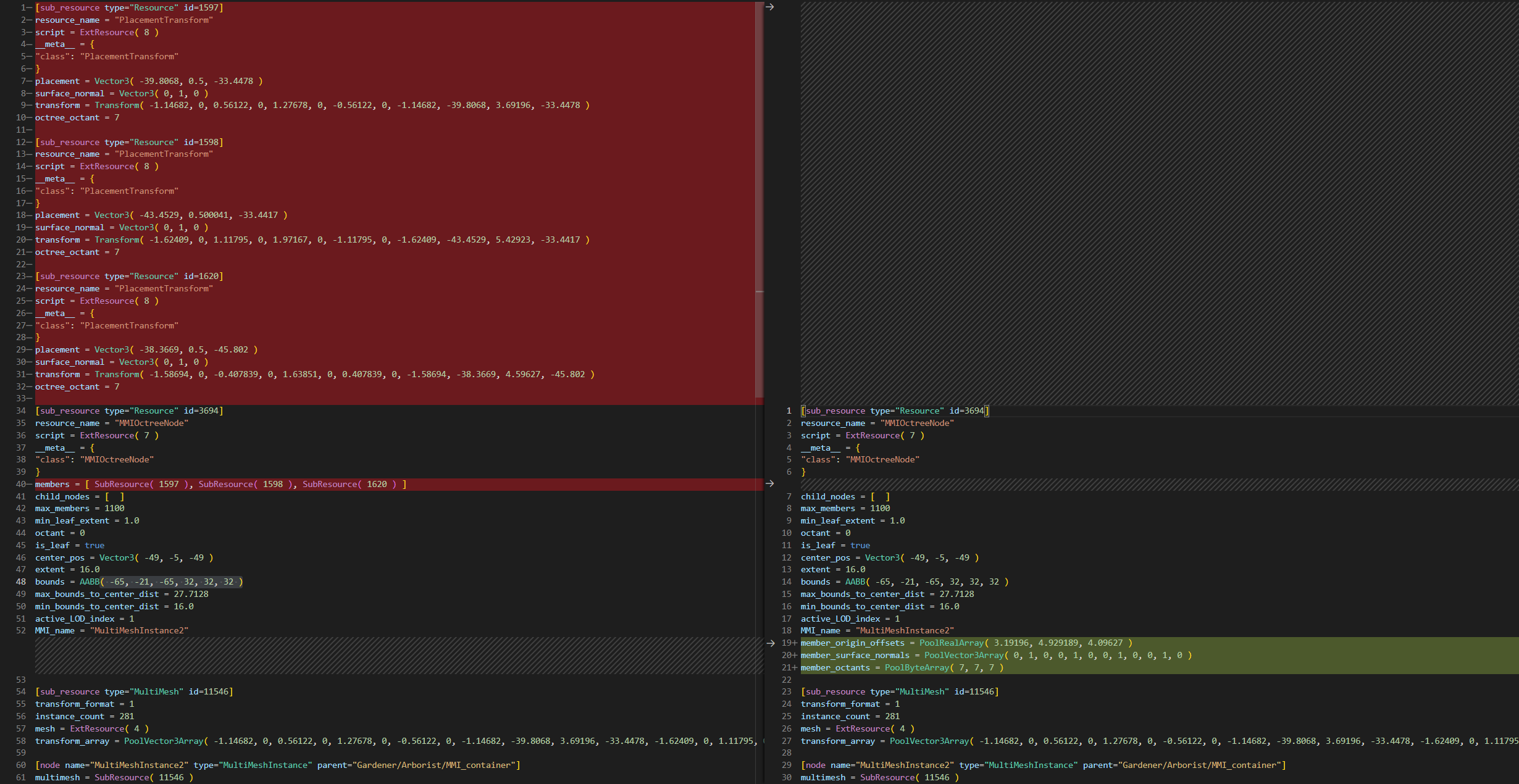

This is gonna get code-y. Let's compare how two versions store their data (click to enlarge).

v.1 on the left, v.2 on the right

Before, each plant's position was stored in a specialized object called PlacementTransform. Storing the info even for 3 plants took a huge amount of space (huge chunk in red on the left).

Then, PlacementTransforms were referenced in a members variable of each owning OctreeNode (lone red line on the left).

Each PlacementTransform had 4 variables:

1. placement - the initial position of a plant calculated during painting.
2. surface_normal - the normal vector of the surface on which plant resides.
3. transform - the actual final transform of a plant. NOTE: the origin can be different than the placement value, due to vertical offset that can be present on each plant (defined in the plant settings panel).
4. octree_octant - which part of the big cube the plant resides in. (In case you know what Octrees are: octant is one of the 8 possible sub-nodes an Octree Node can have)

Several things changed with the new version:

1. Storage was changed from dedicated objects (PlacementTransforms) to more lightweight Pool Arrays (green chunk on the right).
2. Separate transform storage was removed entirely. Since Spatial Gardener uses multimeshes to render plants, all transform values were stored on MultiMesh objects anyway, which resulted in duplicated data.

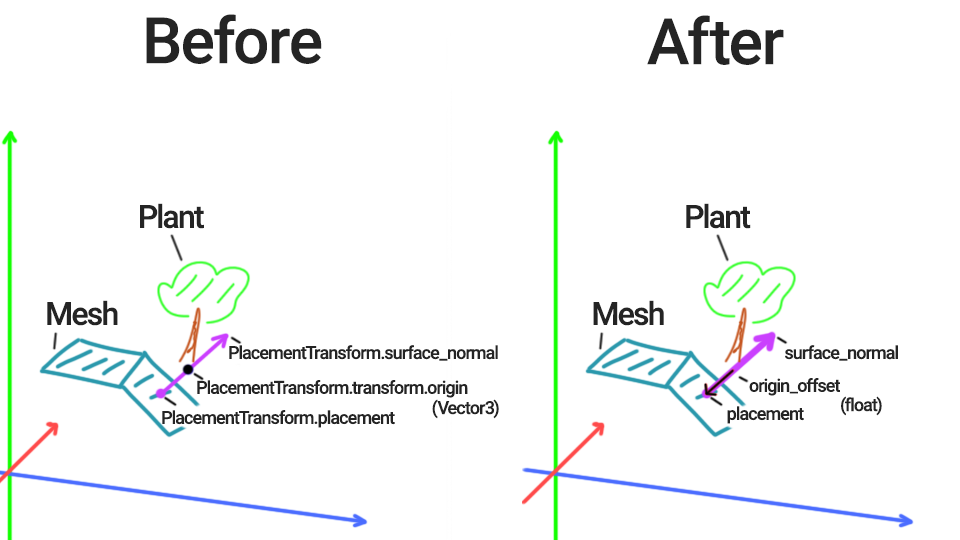

3. Since plants could only be offset on the vertical axis, there was no need to store separate PlacementTransform.placement. We could take the plants Transform and simply store an offset from Transform.origin along the surface_normal vector.
   •

If you wish to manually transfer each plant, you'll need to do the following:

1. For every OctreeNode in the scene, add three members: member_origin_offsets, member_surface_normals and member_octants.
2. Find the node, referenced in OctreeNode.MMI_name. It should have a long array MultiMesh.transform_array.
3. Go over each SubResource reference in the OctreeNode.members property:
   1. Add individual floats for PlacementTransform.surface_normal to OctreeNode.member_surface_normals.
   2. Add integers for PlacementTransform.octree_octant to OctreeNode.member_octants.
   3. Find the corresponding transform for this plant in MultiMesh.transform_array. Transform type consists of 12 floats, with last 3 representing a Transform.origin location in 3D space. For the first plant in the comparison above, that would be ... -39.8068, 3.69196, -33.4478, ....
   4. Use the expression below to calculate origin offset:

      var difference = MultiMesh.transform_array[plant_index].origin - Transform.origin
      var origin_offset = PlacementTransform.surface_normal.dot(difference.normalized()) * difference.length()


   5. Add origin_offset to OctreeNode.member_octants.
   • NOTE: it's important to preserve the original order!
4. Delete the OctreeNode.members property.
5. Delete all the processed PlacementTransform resources.
6. You should be good to go.

Again, it's a good idea to open on issue on GitHub if you got this far.
