quarto-reporting.qmd

---
title: "Beautiful Reports and Presentations<br>with Quarto"
author: "Tom Mock"
date: today
format:
  revealjs:
    self-contained: false
    slide-number: c/t
    width: 1600
    height: 900
    logo: "https://www.rstudio.com/wp-content/uploads/2018/10/RStudio-Logo-Flat.png"
    footer: "[thomasmock.quarto.pub/reports-presentations](https://thomasmock.quarto.pub/reports-presentations/)"
    theme: ["simple", "styles.scss"]
    echo: true
    multiplex: true
    code-link: true
    title-slide-attributes:
      data-background-color: "#447099"
editor: source
---

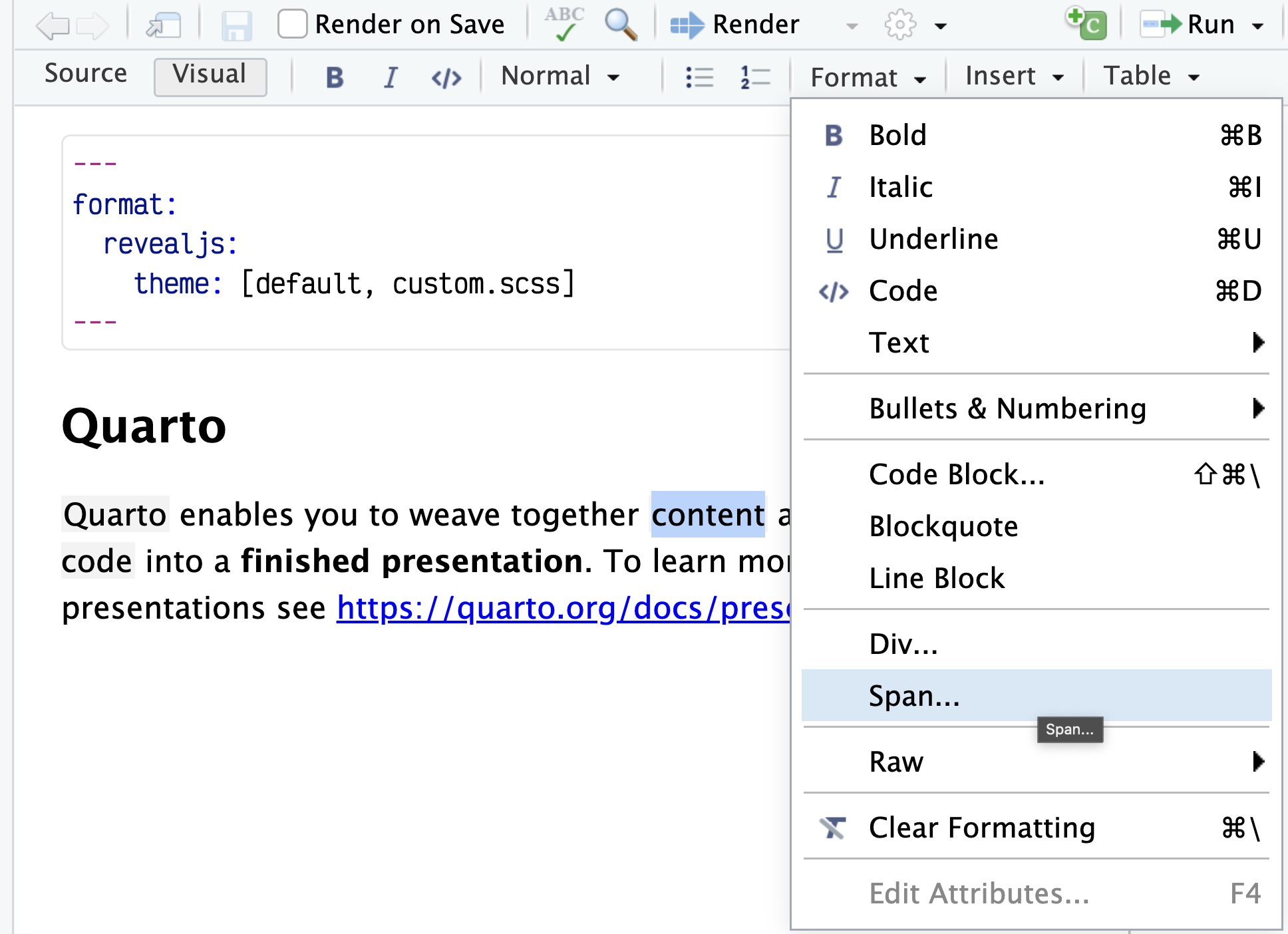

## Quarto - Visual Editor

![](https://quarto.org/docs/visual-editor/images/visual-editing-toolbar.png){fig-alt="A snippet of an RStudio window showing the options bar at the top of an RMarkdown document."}

| Format                                                                                                                                                                       | Insert                                                                                                                                                                       | Table                                                                                                                                                                     |
|------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|---------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| ![](https://quarto.org/docs/visual-editor/images/visual-editing-format-menu.png){fig-alt="The contents of the Format drop down menu."} | ![](https://quarto.org/docs/visual-editor/images/visual-editing-insert-menu.png){fig0alt="The contents of the Insert drop down menu."} | ![](https://quarto.org/docs/visual-editor/images/visual-editing-table-menu.png){fig-alt="The contents of the Table drop down menu."} |

## Static documents

-   A static document is your "daily driver" - has the power for a complex table of contents, figure alignment, control of ouptut/code, and other niceties
-   Useful as a lab notebook, scratchpad, or the final output for your team
- Most powerful as the combination of written thoughts and observations along with source code

## Parameters

You may have a set of parameters that are used to create different variations of a report. For example:

-   Showing results for a specific geographic location.
-   Running a report that covers a specific time period.
-   Running a single analysis multiple times for different assumptions.

## Parameters

::: columns
::: {.column .fragment width="45%"}
**Python** - Papermill style<br>

``` {{python}}
#| tags: [parameters]

alpha = 0.1
ratio = 0.1
```
:::

::: {.column .fragment width="40%"}
<br>

``` {{python}}
str(alpha)
```
:::
:::

. . .

::: columns
::: {.column width="45%"}
**R** - YAML style<br>

    ---
    title: "My Document"
    params:
      alpha: 0.1
      ratio: 0.1
    ---
:::

::: {.column .fragment width="40%"}
<br>

``` {{r}}
str(params$alpha)
```
:::
:::

. . .

**CLI/Terminal**

``` bash
quarto render doc.qmd -P alpha:0.2 -P ratio:0.3
```

## Render with Parameters

::: columns
::: {.column .fragment width="52%"}
``` yaml
---
title: "Penguins"
date: today
format: html
params:
  species: Adelie
---
```

```` markdown
```{{r}}
#| label: setup
#| include: false
library(tidyverse)
library(palmerpenguins)

penguin_filter <- penguins |>
  filter(species == params$species,
    !is.na(body_mass_g))
diff_rows <- nrow(penguins) - nrow(penguin_filter)
```
````

``` markdown
We have data about `r knitr::inline_expr("nrow(penguins)")` penguins. Only
`r knitr::inline_expr("diff_rows")` are classified as `r knitr::inline_expr("params$species")`.
The distribution of the `r knitr::inline_expr("params$species")` penguins
are shown below:
```

```` code
```{{r}}
#| echo: false
penguin_filter |>
  ggplot(aes(body_mass_g)) +
  geom_histogram(binwidth = 100)
```
````
:::

::: {.column .fragment width="44%"}
![](images/penguin-report.png){fig-alt="A screenshot of the output report, displaying the title, date, information about the penguins and a basic histogram."}
:::
:::

## Render with Parameters

``` bash
quarto render penguin-report.qmd -P species:Gentoo --output gentoo-report.html
quarto render penguin-report.ipynb -P species:Gentoo --output gentoo-report.html
```

. . .

```{r}
#| eval: false
#| echo: true
render_fun <- function(penguin){
  quarto::quarto_render(
    input = "penguin-report.qmd",
    execute_params = list(species = penguin),
    output_file = glue::glue("{penguin}-report.html")
  )
}

unique(penguins$species) |>
  as.character() |>
  purrr::walk(render_fun)
```

. . .

``` code
Output created: Adelie-report.html
Output created: Chinstrap-report.html
Output created: Gentoo-report.html
```

## Parameters for modeling

[Example adapted from `tidymodels` docs](https://www.tidymodels.org/learn/models/parsnip-ranger-glmnet/)

``` yaml
---
format: html
params:
  engine: "ranger"
---
```

. . .

``` bash
quarto render tidymodels-example.qmd -P engine:randomForest
quarto render tidymodels-example.qmd -P engine:ranger
```

. . .

<br>

::: columns
::: {.column .fragment width="44%"}
``` code
test_results %>% slice(1:5)

#> # A tibble: 5 × 2
#>   Sale_Price .pred
#>        <dbl> <dbl>
#> 1       5.39  5.27
#> 2       5.28  5.29
#> 3       5.23  5.26
#> 4       5.21  5.25
#> 5       5.60  5.52
```

``` r
test_results %>% metrics(truth = Sale_Price,
                          estimate = .pred)

#> # A tibble: 3 × 3
#>   .metric .estimator .estimate
#>   <chr>   <chr>          <dbl>
#> 1 rmse    standard      0.0925
#> 2 rsq     standard      0.742
#> 3 mae     standard      0.0620
```
:::

::: {.column .fragment width="44%"}
``` r
test_results %>% slice(1:5)

#> # A tibble: 5 × 2
#>   Sale_Price .pred
#>        <dbl> <dbl>
#> 1       5.39  5.27
#> 2       5.28  5.28
#> 3       5.23  5.26
#> 4       5.21  5.32
#> 5       5.60  5.51
```

``` r
test_results %>% metrics(truth = Sale_Price,
                          estimate = .pred)

#> # A tibble: 3 × 3
#>   .metric .estimator .estimate
#>   <chr>   <chr>          <dbl>
#> 1 rmse    standard      0.0944
#> 2 rsq     standard      0.731
#> 3 mae     standard      0.0626
```
:::
:::

# Unified Syntax {background-color="#447099"}

## Quarto's unified syntax

::: {style="font-size: 65px;"}
``` bash
quarto render boston-terrier.qmd --to html
```
:::

. . .

::: {style="font-size: 65px;"}
``` bash
quarto render boston-terrier.qmd --to pdf
```
:::

#

::: {.columns style="margin-top: -100px;"}
::: {.column width="45%"}
![HTML](images/boston-history-html.jpeg){fig-alt="A screenshot of a HTML article about Boston Terriers, the document has an image in the right hard margin, a floating table of contents, and different sections split up by headers"}
:::

::: {.column .fragment width="50%"}
![PDF](images/boston-history-pdf.jpeg){fig-alt="A screenshot of a PDF article about Boston Terriers, the document has an image in the right hard margin, a floating table of contents, and different sections split up by headers"}
:::
:::

## Pandoc fenced divs

``` markdown
::: {.class}
All this content can be modified
:::
```

. . .

Structure:

-   Start and end with equal number of `:` - minimum of 3 `:::`
-   Add curly brackets to indicate the start/end of class `{.class}` or `{sometimes-class}`

. . .

``` code
::: {layout-ncol=2}

![](image.png){fig-alt="Description of image 1"}

![](image2.png){fig-alt="Description of image 1"}
:::
```

## Tabsets

Split up and flip between sections of a page, alternative to just two columns

``` code
::: {.panel-tabset}

## Element 1
...content...

## Element 2
...content...
:::
```

## Tabsets

::: panel-tabset
## Code

```{r}
#| echo: fenced
#| eval: false
head(mtcars)
```

## Output

```{r}
#| eval: true
#| echo: false
head(mtcars)
```
:::

## Tabsets

    ::: {.panel-tabset}
    ## Code
    ```{{r}}
    #| echo: fenced
    #| eval: false
    head(mtcars)
    ```


    ## Output
    ```{{r}}
    #| eval: true
    #| echo: false
    head(mtcars)
    ```
    :::

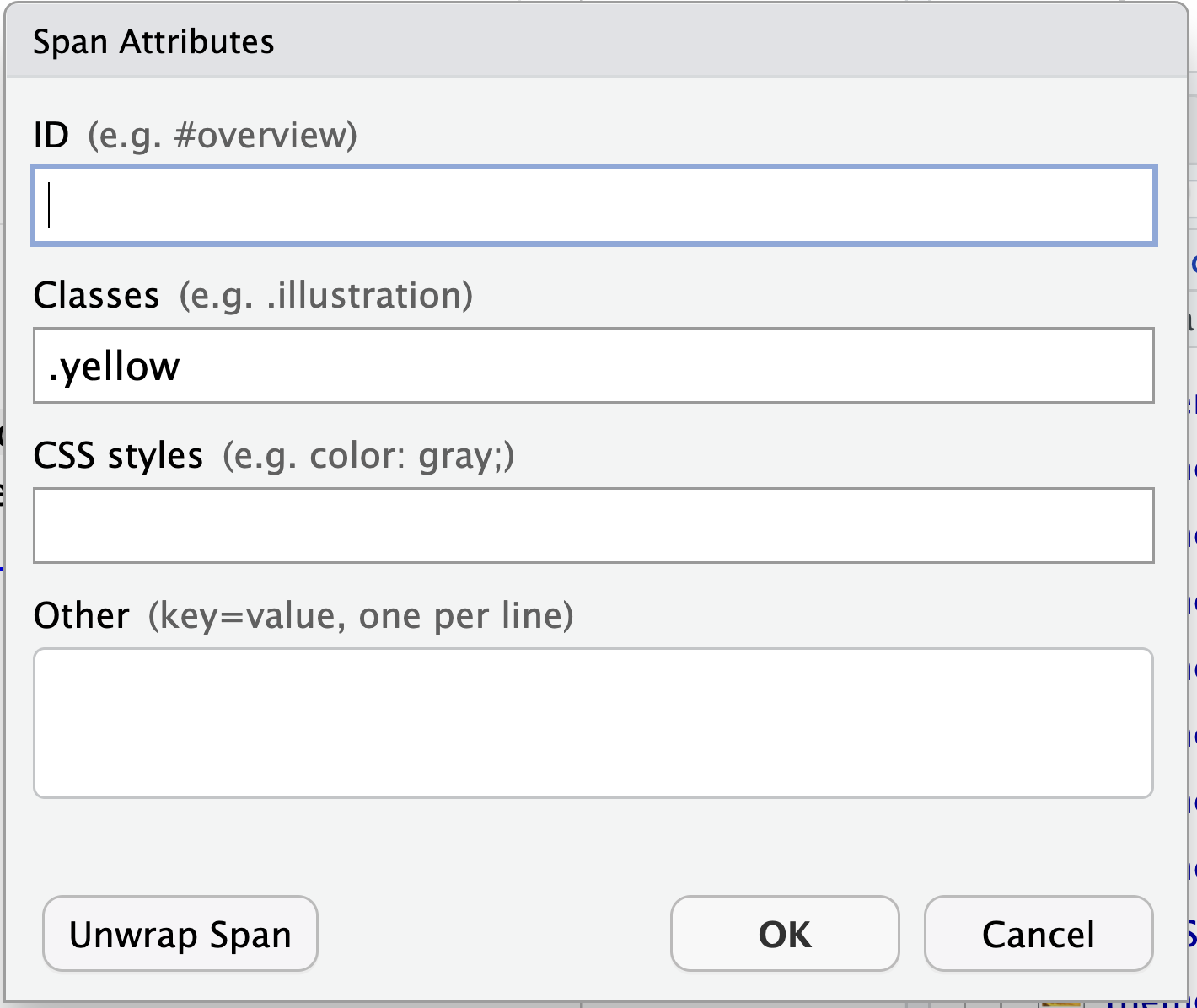

## Pandoc bracketed spans

This is [magic text]{.fragment}

. . .

``` markdown
# this only works in presentations
This is [magic text]{.fragment}
```

. . .

Structure:

-   Surround text with `[text]`
-   Add curly brackets to indicate the start/end of class `{.class}` or `{sometimes-class}`

## Footnotes

You can create inline footnotes like so: `some inline text with a^[footnote]`

. . .

If you hover your mouse over the citation and footnote in this sentence you'll see a popup displaying the reference contents:

``` yaml
format:
  html:
    citations-hover: true
    footnotes-hover: true
```

. . .

<br>

``` markdown
For example, did you know that Howard is a dog^[Specifically he is a Boston Terrier, although
sometimes he acts like a cat]?
```

## Unified syntax

Layout image inline with paragraphs

``` markdown
::: {layout="[[30, 70], [100]]"}
![Terrier Seated](Terrier_Seated_(Boston_Public_Library).jpeg){width="50%" fig-alt="Description of boston terrier"}

...paragraph 1...

...paragraph 2...

:::
```

. . .

Put image into the "gutter"/column margin

``` markdown
![A young male Boston Terrier with a Brown brindle coat](330px-Boston_Terrier_male.jpeg){.column-margin fig-alt="Description of a young male Boston Terrier with a Brown brindle coat"}
```

. . .

Add footnotes:

``` markdown
The average life span of a Boston Terrier is around 11 to 13 years.^["The Boston Terrier Club Of America". Bostonterrierclubofamerica.org.]
```

# Code {background-color="#447099"}

## Hide all code

``` yaml
format: html
execute:
  echo: false
```

. . .

Turn back on at individual code-block level:

``` r
#| echo: true
```

## Fold code

``` yaml
format:
  html:
    code-fold: true
    code-summary: "Hidden code"
```

. . .

Turn on at individual code-block level:

``` r
#| code-fold: true
#| code-summary: "Hidden code"
```

## Code tools

``` yaml
format:
  html:
    code-fold: true
    code-tools: true
```

. . .

![](https://quarto.org/docs/output-formats/images/code-tools-01.png){fig-alt="Screenshot of Quarto document with the Code tools dropdown"}

## Code tools, source

> For example, here we specify that we want only "View Source" (no toggling of code visibility) and no caption on the code menu:

``` yaml
format:
  html:
    code-tools:
      source: true
      toggle: false
      caption: none
```

. . .

![](https://quarto.org/docs/output-formats/images/code-tools-source.png){fig-alt="Screenshot of Quarto document with the source option overlay"}

## Code tools, source repo

In some situations (especially for longer documents), you may prefer to send viewers to the source code on a version-control website rather than the built in viewer.

. . .

``` yaml
format:
  html:
    code-tools:
      source: https://github.com/quarto-dev/quarto-web/blob/main/index.md
```

# Code appearance {background-color="#447099"}

## Code highlighting

[Full highlighting options](https://quarto.org/docs/output-formats/html-code.html#highlighting)

```{r}
#| message: false
library(dplyr)
mtcars |>
  group_by(cyl, am) |>
  summarize(mean = mean(mpg), n = n(), .groups = "drop")
```

## Code highlighting

``` yaml
format:
  html:
    highlight-style: arrow
```

![](https://quarto.org/docs/output-formats/images/arrow.png){.nostretch width="50%" fig-alt="Screenshot of code with a light theme on white background"}

## Code highlighting

``` yaml
format:
  html:
    highlight-style: arrow
    theme:
      light: flatly
      dark: darkly
```

. . .

![](https://quarto.org/docs/output-formats/images/html-dark.png){fig-alt="Screenshot of dark mode toggle in Quarto doc."}

. . .

![](https://quarto.org/docs/output-formats/images/arrow-dark.png){fig-alt="Screenshot of code with a light theme on white background"}

## Code linking with [`downlit`](https://downlit.r-lib.org/)

> The goal of `downlit` is to provide syntax highlighting and automatic linking of R code

``` yaml
format:
  html:
    code-link: true
```

# Aesthetics {background-image="images/howard-gentleman.jpeg" background-size="contain" background-position="right" background-color="black"}

## HTML Appearance

Out of the box, Quarto is styled with Bootstrap 5 and opinionated defaults.

Bootstrap is the most popular CSS Framework for responsive websites, where v5 is the latest.

. . .

Quarto comes pre-installed with 25 themes from [Bootswatch](https://bootswatch.com/) and you can use them like so:

``` yaml
---
format:
  html:
    theme: litera
---
```

<br>

. . .

Or you can customize a theme with CSS/SCSS/SASS.

``` yaml
---
format:
  html:
    theme:
      - litera
      - custom.scss
---
```

## Bootswatch themes

![](images/bootswatch.png){fig-alt="Screenshot of 6 bootswatch themes"}

## PDF Articles

``` yaml
format:
  pdf:
    template: mytemplate.tex
```

. . .

<br>

See more on Journal Articles at <https://github.com/quarto-journals/>

::: columns
::: {.column .fragment width="35%"}
``` yaml
----
title: "My Document"
toc: true
format:
   acm-pdf: default
   acm-html: default
---
```
:::

::: {.column .fragment width="60%"}
![](images/jss.png){fig-alt="Screenshot of a rendered Quarto document to the Journal of Statistical Science format."}
:::
:::

## More PDF + LaTeX templates

Great work from the NFMS Open Science team on "Quarto titlepages": <https://nmfs-opensci.github.io/quarto_titlepages/>

> The tex templates were written by [Eli Holmes](https://github.com/eeholmes) and the lua filter along with changes to the Pandoc templates to allow themes was written by [Mickaël Canouil](https://github.com/mcanouil).

. . .

![](https://nmfs-opensci.github.io/quarto_titlepages/images/bg-image.png){fig-alt="A screenshot of the titlepages Quarto output PDF. It has a logo, along with the title information and the affiliations of the authors."}

# Presentations {background-color="#447099"}

## Output types

-   Quarto supports a variety of formats for creating presentations, including:

    -   `revealjs` --- [reveal.js](https://quarto.org/docs/presentations/revealjs/) (HTML)

    -   `pptx` --- [PowerPoint](https://quarto.org/docs/presentations/powerpoint.html) (MS Office)

    -   `beamer` --- [Beamer](https://quarto.org/docs/presentations/beamer.html) (LaTeX/PDF)

## Follow-up reading

-   Emil Hvitfeldt's [Slidecraft 101: Colors and Fonts](https://www.emilhvitfeldt.com/post/slidecraft-colors-fonts/)
-   Meghan Hall's [Quarto Slides](https://meghan.rbind.io/blog/quarto-slides/)

## Shared structures

-   Incremental reveal/lists
-   Multiple columns for layout
-   Title/subtitle/author/etc
-   Headings
-   Code/Output

## Creating slides

``` code
---
format: revealjs
---

## Slide 1

## Slide 2
```

## Incremental Lists

Controllable via YAML:

``` yaml
format:
  pptx:
    incremental: true
```

. . .

Or turn on/off via fenced divs:

::: columns
::: {.column .fragment width="45%"}
``` markdown
::: {.incremental}

- Howard sleeps
- Howard sprints

:::
```
:::

::: {.column .fragment width="45%"}
``` markdown
::: {.nonincremental}

- Howard eats
- Howard sleeps

:::
```
:::
:::

## Multiple Columns

``` markdown
:::: {.columns}

::: {.column width="50%" .fragment}
Left column
:::

::: {.column width="50%" .fragment}
Right column
:::

::::
```

# Presentations with `format: revealjs` {background-color="#447099"}

## SECRET TIP

<kbd>Alt + Click</kbd> to Zoom in to a section

::: {.absolute .fragment bottom="25" left="100"}
![](images/howard-gentleman.jpeg){width="150" fig-alt="Howard dressed as a victorian gentleman"}
:::

## Absolute Position

Absolute position allows for tight control of placement.

. . .

``` markdown
::: {.absolute bottom=25 left=100 .fragment}

![](images/howard-gentleman.jpeg){width=150 fig-alt="Howard dressed as a victorian gentleman"}

:::
```

## `output-location: column-fragment`

```{r}
#| echo: fenced
#| output-location: column-fragment
library(ggplot2)

ggplot(mtcars, aes(x = mpg, y = disp)) +
  geom_point()
```

## Themes

Quarto comes with 10 built-in themes:

`beige`, `blood`, `dark`, `default`, `league`, `moon`, `night`, `serif`, `simple`, `sky`, `solarized`

. . .

``` yaml
---
title: "Presentation"
format:
  revealjs:
    theme: [simple, custom.scss]
---
```

## Themes + SCSS/SASS

``` css
@import url('https://fonts.googleapis.com/css2?family=Fira+Mono&family=Open+Sans:ital,wght@0,300;0,400;0,500;0,600;0,700;0,800;1,300;1,400;1,500;1,600;1,700;1,800&display=swap');

/*-- scss:defaults --*/

$link-color: #EE6331;
$font-family-sans-serif: 'Open Sans', sans-serif;
$font-family-monospace: 'Fira Mono', monospace;

$presentation-title-slide-text-align: left;

/*-- scss:rules --*/

h2 {
  color: #447099 !important;
}
```

## Footer/Logo

``` yaml
---
format:
  revealjs:
    logo: "pic1.png"
    footer: "Footer text"
---
```

. . .

``` yaml
---
format:
  revealjs:
    logo: "https://www.rstudio.com/wp-content/uploads/2018/10/RStudio-Logo-Flat.png"
    footer: "[Reports and Presentations with Quarto](https://thomasmock.quarto.pub/reports-presentations/)"
---
```

. . .

One off footer:

``` markdown
::: {footer}
Did you notice the footer?
:::
```

::: footer
Did you notice the footer?
:::

## Slide Background {background-color="black" background-image="images/howard-gentleman.jpeg" background-size="100px" background-repeat="repeat"}

## Slide Background

``` markdown
## Slide Background {background-color="black" background-image="images/howard-gentleman.jpeg" background-size="100px" background-repeat="repeat"}
```

. . .

| **Attribute**         | **Default** | **Description**                                                                                   |
|:------------|:------------|:---------------------------------------------|
| `background-image`    |             | URL of the image to show. GIFs restart when the slide opens.                                      |
| `background-size`     | cover       | See [background-size](https://developer.mozilla.org/docs/Web/CSS/background-size) on MDN.         |
| `background-position` | center      | See [background-position](https://developer.mozilla.org/docs/Web/CSS/background-position) on MDN. |
| `background-repeat`   | no-repeat   | See [background-repeat](https://developer.mozilla.org/docs/Web/CSS/background-repeat) on MDN.     |
| `background-opacity`  | 1           | Opacity of the background image on a 0-1 scale. 0 is transparent and 1 is fully opaque.           |

## Slide Background

Changing the background color will modify the font color for better contrast

. . .

``` markdown
## Slide Background {background-color="black")
```

## Background videos

Automatically plays a full size video behind the slide.

| **Attribute**            | **Default** | **Description**                                                                         |
|:------------------|:----------------|:-----------------------------------|
| `background-video`       |             | A single video source, or a comma separated list of video sources.                      |
| `background-video-loop`  | false       | Flags if the video should play repeatedly.                                              |
| `background-video-muted` | false       | Flags if the audio should be muted.                                                     |
| `background-size`        | cover       | Use `cover` for full screen and some cropping or `contain` for letterboxing.            |
| `background-opacity`     | 1           | Opacity of the background video on a 0-1 scale. 0 is transparent and 1 is fully opaque. |

## `r-stack` + fragments

``` markdown
::: {.r-stack}
![](image1.png){.fragment width="450"}

![](image2.png){.fragment width="300"}

![](image3.png){.fragment width="400"}
:::
```

## `r-stack` + fragments

::: r-stack
![](https://upload.wikimedia.org/wikipedia/commons/thumb/f/f3/Boston_Terrier_male.jpg/330px-Boston_Terrier_male.jpg){.fragment width="450"}

![](https://upload.wikimedia.org/wikipedia/commons/thumb/3/3d/Boston_Terrier_Eden_Forever.JPG/330px-Boston_Terrier_Eden_Forever.JPG){.fragment width="300"}

![](images/howard-gentleman.jpeg){.fragment width="400"}
:::

## Custom classes

From Emil's [article](https://www.emilhvitfeldt.com/post/slidecraft-colors-fonts/):

``` css
*-- scss:rules --*/

.blue {
  color: $theme-blue;
  font-weight: bold;
}

.yellow {
  color: $theme-yellow;
  font-weight: bold;
}
```

. . .

``` markdown
[Quarto]{.blue} enables you to weave together [content]{.yellow} and
[executable code]{.yellow} into a **finished presentation**.
To learn more about [Quarto]{.blue} presentations see <https://quarto.org/docs/presentations/>.
```

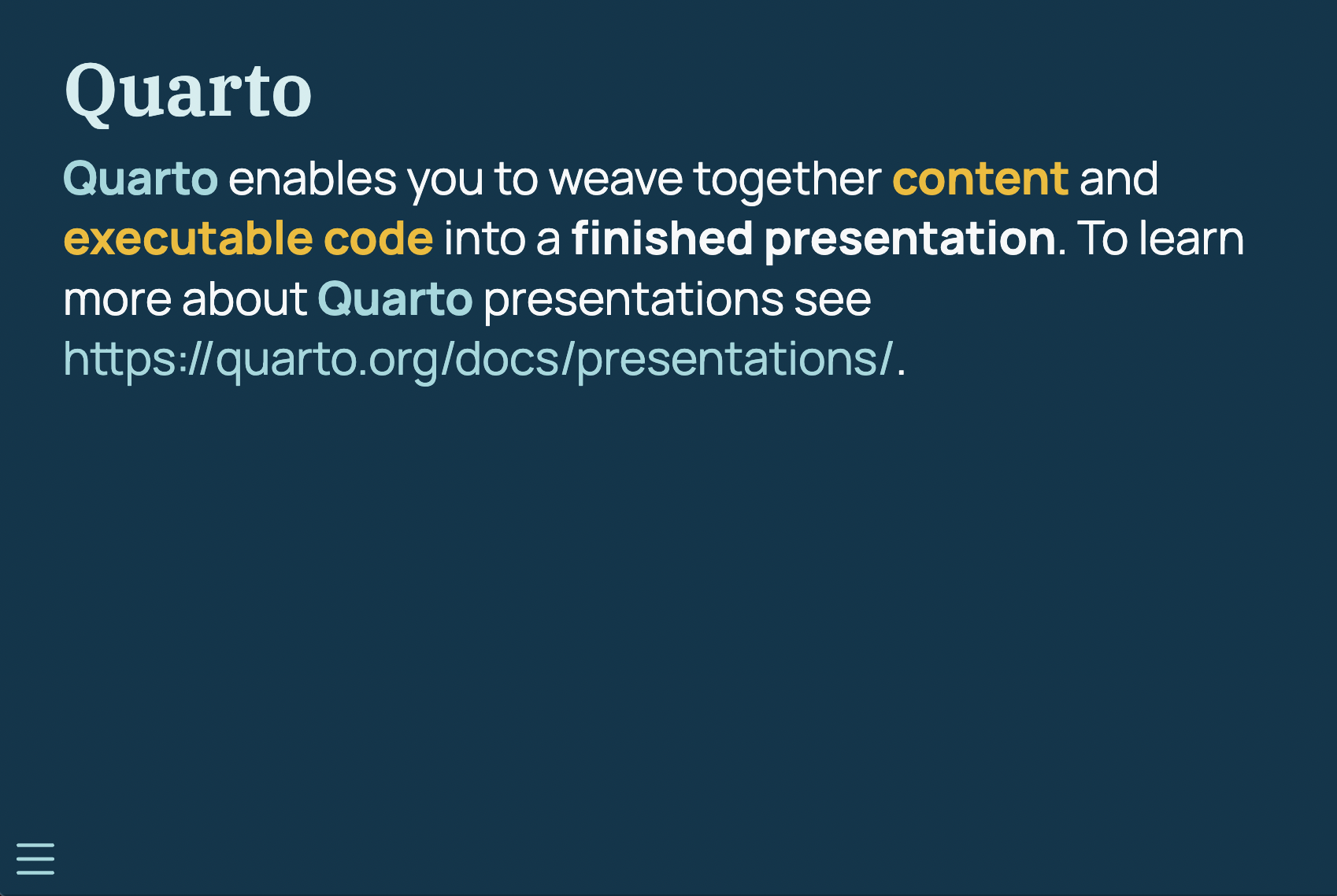

## Custom Classes

![](https://www.emilhvitfeldt.com/post/slidecraft-colors-fonts/theme-example-highlight.png){fig-alt="Screenshot of Quarto presentation with specific text highlighted yellow/blue."}

## Applying classes

Use bracketed spans: `[text to color]{.yellow}` or use RStudio's Visual Editor:

::: columns
::: {.column .fragment width="45%"}
![](https://www.emilhvitfeldt.com/post/slidecraft-colors-fonts/apply-class-2.png)
:::

::: {.column .fragment width="45%"}
![](https://www.emilhvitfeldt.com/post/slidecraft-colors-fonts/apply-class-3.png)
:::
:::

## The end!

Read all the docs at <https://quarto.org/docs/guide/>

### Reports

-   [Quarto docs: Documents](https://quarto.org/docs/output-formats/html-basics.html)
-   [Quarto Gallery: Articles + Reports](https://quarto.org/docs/gallery/#articles-reports)
-   [Quarto Journal Articles](https://quarto.org/docs/journals/index.html)
-   "Quarto titlepages": <https://nmfs-opensci.github.io/quarto_titlepages/>

### Presentations

-   [Quarto docs: Presentations](https://quarto.org/docs/presentations/)
-   [Quarto Gallery: Presentations](https://quarto.org/docs/gallery/#presentations)
-   Emil Hvitfeldt's [Slidecraft 101: Colors and Fonts](https://www.emilhvitfeldt.com/post/slidecraft-colors-fonts/)
-   Meghan Hall's [Quarto Slides](https://meghan.rbind.io/blog/quarto-slides/)
-   Andrew Heiss' Quarto slides on [APIs and webscraping with R](https://github.com/andrewheiss/2022-seacen)
